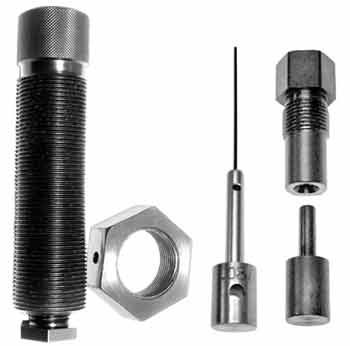

The Walnut Hill Kit is a complete set of adapters designed to enable the use of any Corbin -S type swage die and external punch in a Walnut Hill press. This kit is perfect for those who want to expand the capabilities of their Walnut Hill press.
The kit includes:
- WH-ADAPT, a two-part adapter which allows the following dies to fit and operate in the WH press: CSW-1-S, CS-1-S. LSWC-1-S, RBT-2-S dies, and similar swage dies which do not require a captive ejection punch.
- WH-EJECT, a special ejection punch with your choice of ejection pin diameter to match a specific PF-1-S die or end rounding die from a cTJM-1-S set. You must specify the caliber and ejection pin wire size for a given PF-1-S die. These are marked on the end of each die. You need to add ejectors for different sizes of PF-1-S dies IF they use different ejection pin diameters. The other components are the same for all calibers.
- FPH-1-S, standard floating punch holder which holds and adjusts the position of any Corbin external swage punch for any die, in the head of the WH press.
- Main Purpose: Enables the use of Corbin -S type swage dies in a Walnut Hill press
- Compatibility: Exclusively designed for Walnut Hill presses
- Material: Made from high-quality materials for durability and precision
- Set Components: Includes a complete set of adapters for various swage dies and punches
Benefits
- Versatility: Allows you to use a wide range of Corbin -S type swage dies
- Ease of Use: Easy to install and integrate with your existing Walnut Hill setup
- Durability: Built for long-lasting use
- Precision: Ensures accurate swaging tasks
