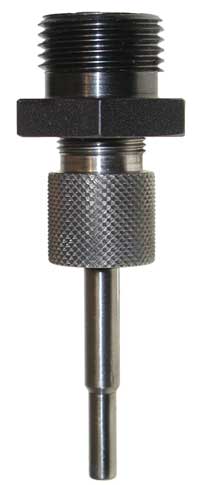

The H Type 22LR to 243 Rim Fire Jacket Maker Set converts fired .22 LR cases into .243 centerfire bullet jackets. This set is compatible with Corbin H style presses, for example the Mega-Mite or Hydro Press, as well as standard reloading presses. This H Type Jacket Maker Set is essentially the same Set for the S-Press but there is an additional Adapter Kit that allows the Set to work for H Type Presses.

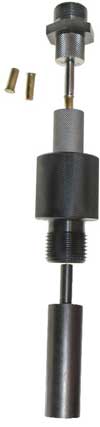

The Set will include:
- RFJM-6MS
- Adapter Kit for H Type Presses
The final size takes place when the lead core is seated and expands the jacket. The head of the case is drawn straight, and the mouth of the jacket end up flared. Only the head section is reduced to about 0.219 inches. The reset of the case is left full diameter.
- Main Purpose: Converts fired .22 LR cases into .243 centerfire bullet jackets
- Compatibility: Works with Corbin S-Press, CSP-2, CHP-1 HydroPress, and standard reloading presses
- Components: Includes a threaded die and a separate drawing punch
Benefits
- Cost-Effective: Utilizes spent .22 LR cases, offering a cost-effective way to create .243 bullet jackets
- Versatility: Compatible with multiple types of presses, including standard reloading presses
- Efficiency: One set for multiple calibers, capable of making jackets for .243 calibers
- Ease of Use: Simple procedure that requires minimal adjustments
- Quality: Produces high-quality, thin-wall bullet jackets
