H Type Retraction Pin

H Type Retraction Pin

Essential Component for Corbin Hydro Press and Mega Mite Press

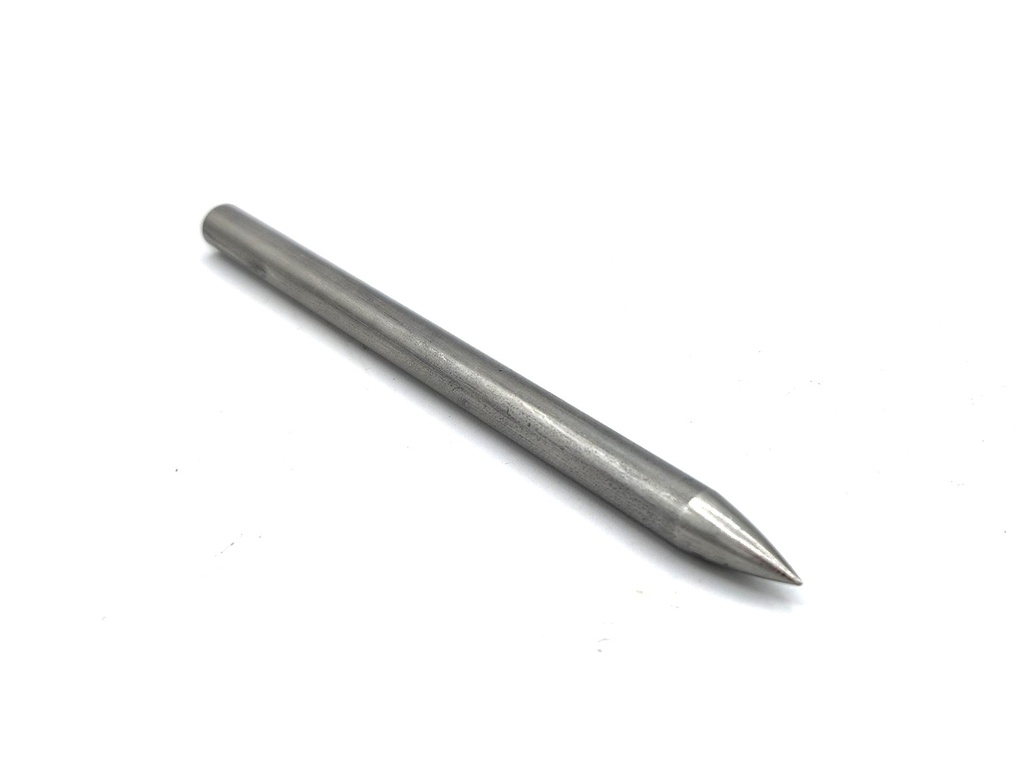

Enhance the performance of your Corbin Hydro Press (CHP-1) or Mega Mite Press (CSP-2) with the H Type Retraction Pin. This robust, 1/4-inch diameter stainless steel pin is designed to facilitate the retraction of the punch during the upstroke, ensuring smooth and efficient operation of your press.

Key Features:

• Precision Fit: The retraction pin fits securely through the ram and aligns with the hole in the internal punch head specifically designed for -H dies. This precise fit is essential for optimal functionality within your press.
• Reliable Operation: The pin transfers the force of a large spring surrounding the press ram to the punch head, effectively retracting the punch during operation. This mechanism is crucial for maintaining consistent performance and accuracy.
• Easy Installation: Installing the retraction pin is straightforward. Simply raise the ram, insert the internal punch, align the hole with the slot in the ram, and push the retraction pin through the ram and hole under the spring, resting it on the knock-out bar.
• Compatibility: The retraction pin is designed for use with the CSP-2 Mega Mite Press and CHP-1 Hydro Press, as well as the legacy Hydro Junior ensuring you have the right component for your equipment.
• Replacement Part: Each press comes with a retraction pin, but this product is also offered as a spare part, ensuring you can maintain your press’s functionality without hassle.

Important Considerations:

When installed correctly, the internal punch will be pushed down as the ram is raised and will stop against a shoulder inside the ram. Lowering the ram will stop the punch against the knock-out bar, ensuring accurate ejection and operation. For the CHP-1 Hydro Press, the bottom position of the ram is adjustable via a sensor, while the CSP-2 press has a fixed bottom position determined by the linkage mechanics.

Upgrade your Corbin presses with the reliable H Type Retraction Pin and ensure seamless operation of your bullet-making process!

• Main Purpose: Allows a large spring to push the punch down, keeping it out of the die cavity during operations
• Compatibility: Works with Corbin Hydro-Press, Hydro Junior, and Mega-Mite presses
• Features: Fits into the head of certain internal punches

Benefits

• Efficiency: Ensures smooth and efficient bullet swaging operations.
• Integration: Seamlessly integrates into your existing Corbin press setup.
• Quality: Manufactured to Corbin's high standards for durability and performance.
• Ease of Installation: Designed for quick and straightforward setup.
