| Space between supports | A | 2.00 |
| Width of head | B | 4.00 |
| Support Diameter | C | 0.75 |
| Head threads | D | 7/8-14 |
| Ram threads | E | 5/8-24 |
| Ram-Head top of stroke clearance, short stroke mode | F | 3.25 |
| Ram-Head top of stroke clearance, long stroke mode | F | 2.25 |
| Ram-Head bottom of stroke clearance, either mode | G | 5.25 |
| Stop pin (remove in long stroke mode) | H | n/a |
| Head thickness | I | 0.75 |
| Head depth | J | 1.50 |
| Support centers | K | 2.75 |
| Mounting plate depth | L | 6.00 |

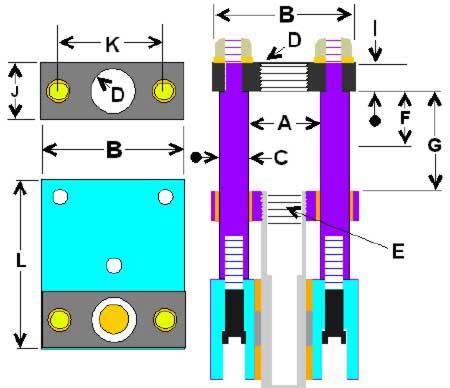

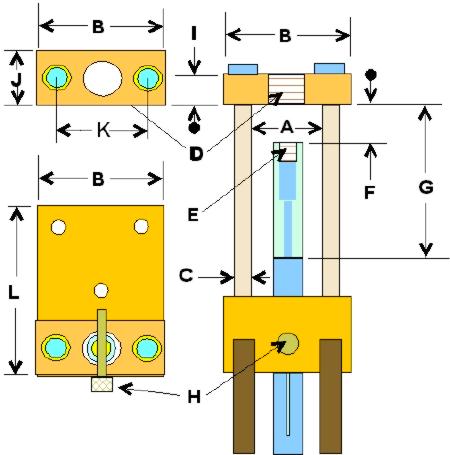

CSP-2 Mega Mite Press CSP-2 MegaMite Press head and frame dimensions (refer to table below) | |||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||
| Mounting pattern for CSP-1 and CSP-2 presses; (outer set of 1/2-in x 13 tpi holes is for the larger CSP-2 press):  | |||||||||||||||||||||||||||||||||||||||

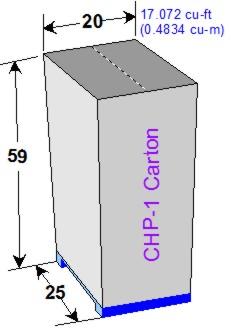

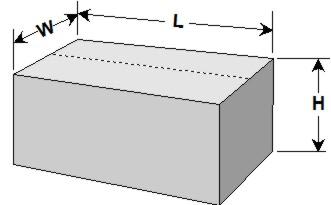

Shipping Information  CSP-1 S-Press: 22 lbs, 19-in x 11-in x 9-in carton. (L=19, H=11, W=9) CSP-2 Mega Mite Press: 70 lbs, 31-in x 10-in x 9-in carton. (L=31, H=10, W=9) CHP-1 Hydro Press: 250 lbs, 59-in tall x 20-in x 25-in pallet. (L=20, W=25, H=59) | |||||||||||||||||||||||||||||||||||||||
| Background drawing is the handle retainer bracket for the CSP-2 Mega Mite press |
Start writing here...
Corbin S-Press Specs
